Transformations

How cuts in the ground, edges and pacing shape how a body occupies a small landscape.

Transformations
TypeSite intervention
FocusTopography + water
OutputPlan, section, perspective, render
StudioHAA96A, Spring 2023

A small landscape intervention negotiates a change in grade through stepped platforms and voids.

ProblemHow do ground cuts, edges and pacing shape how people occupy a small landscape?
MoveStepped platforms and voids that negotiate a change in grade.
OutputSite plan, section, perspective and render.

Render

Bird's eye 01
Bird's eye 01

Plans

Ground plan, 1/8" = 1'-0"
Ground plan, 1/8" = 1'-0"

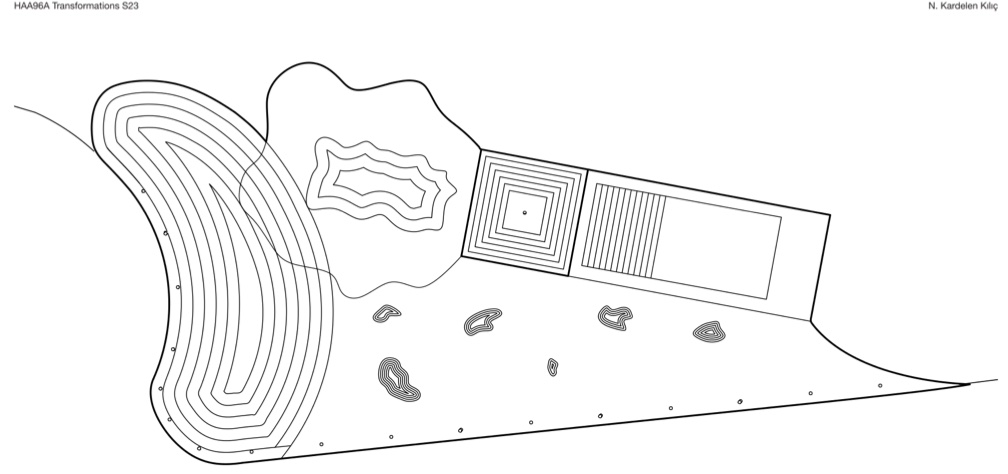

Plan 02, 1/8" = 1'-0"
Plan 02, 1/8" = 1'-0"

Section and perspective

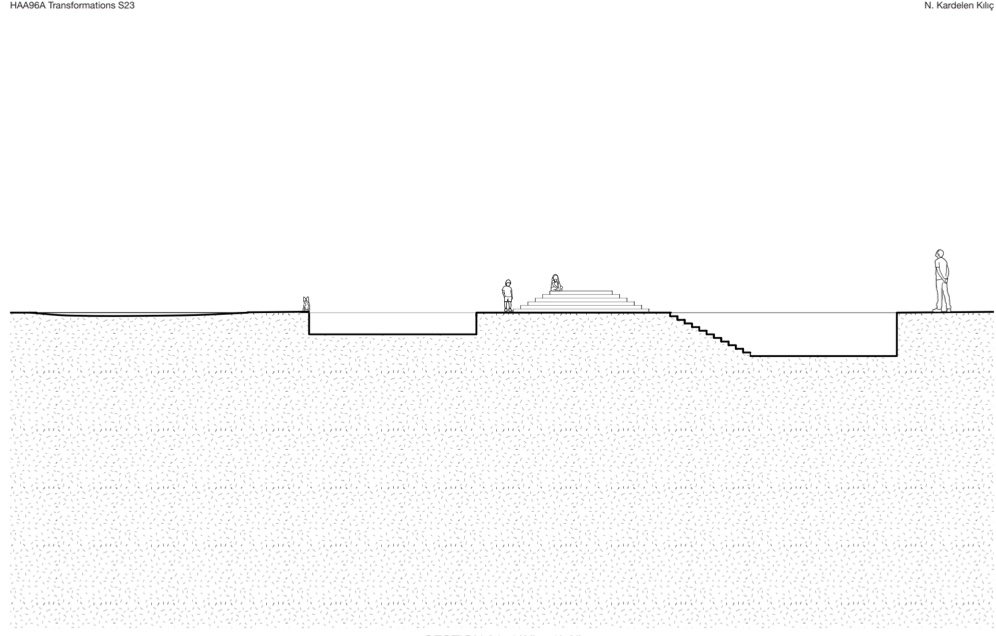

Section 01, 1/8" = 1'-0"
Section 01, 1/8" = 1'-0"
Perspective 02
Perspective 02
